Hand-Held Clinch Unit ULG SN4
The pneumo-hydraulic clinch and pierce unit ULG SN4 combines high joining force with rapid cycle time.
The integrated air-oil-booster runs silently and completely vibration-free. 6 bar air supply activates the drive system. The joining stroke can be released by a hand lever. Also a foot pedal release is available. ULG clinch units offer an high level of integrity in use. The well-balanced, light-weight and ergonomical construction of this unit minimizes the stress on the user.
The modular design of the mobile clinching units ULG-SN4 allows the use of a wide range of tool holders, such as C-frame, scissor heads and various special holders. These can be changed in just a few steps while the drive unit remains the same.

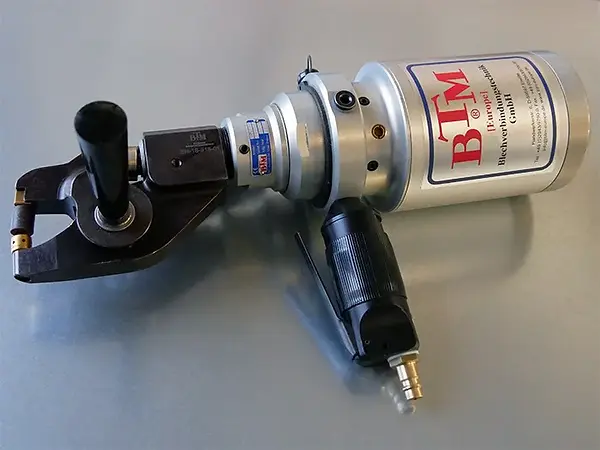

Hand-Held Clinch Unit ULG SN6
The pneumo-hydraulic clinch and pierce unit ULG SN6 combines high joining force with rapid cycle time.
The integrated air-oil-booster runs silently and completely vibration-free. 7 bar air supply activates the drive system. The joining stroke can be released by a hand lever. Also a foot pedal release is available. ULG clinch units offer an high level of integrity in use. Due to their modular design, a wide range of tooling heads such as several C-frames, scissor heads respectively special heads can be offered. The tooling can be changed in just a few steps while the drive unit remains identical.
The well-balanced, light-weight and ergonomical construction of this unit minimizes the stress on the user.
Hand-Held Clinch Unit ULG SN7
The pneumo-hydraulic clinch and pierce unit ULG SN7 combines high joining force with rapid cycle time.
The integrated air-oil-booster runs silently and completely vibration-free. 7 bar air supply activates the drive system. The joining stroke can be released by a hand lever. Also a foot pedal release is available. ULG clinch units offer an high level of integrity in use.
Due to their modular design, a wide range of tooling heads such as several C-frames, scissor heads respectively special heads can be offered. These can be changed in just a few steps while the drive unit remains identical.
The well-balanced, light-weight and ergonomical construction of this unit minimizes the stress on the user.

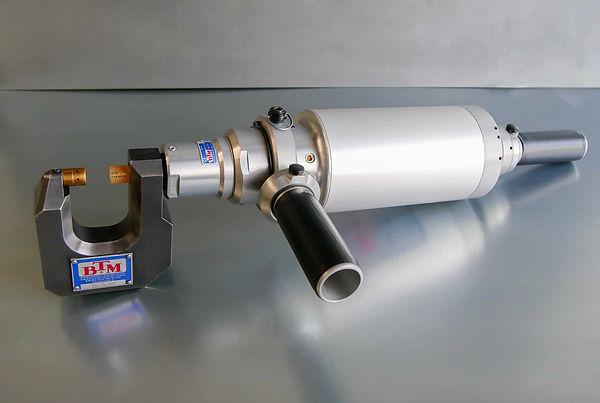

Hand-Held Clinch Unit ULG SN8
The pneumo-hydraulic clinch and pierce unit ULG SN8 combines high joining force with rapid cycle time.
The integrated air-oil-booster runs silently and completely vibration-free. The drive is perely pneumatic and accelarates at 6 bar air supply 28 kN press force. The ULG SN-8 manual tongs have a stroke of 15 mm max. and are operated via a 2-hand release. Optionally, the joining stroke can also be triggered via foot pedal release. It is the ideal solution for overcoming interfering contours > 6 mm.
ULG-SN8 clinch unit offers an high level of integrity in use. Due to its modular design, a wide range of tooling heads available such as several C-frames, scissor heads respectively special heads can be offered. These can be changed in just a few steps while the drive unit remains identical.
The well-balanced, light-weight and ergonomical construction of this unit minimizes the stress on the user.
Hand-Held Clinch Unit HHP-Mini
The pneumatically operated HHP-Mini hand clinching pliers are characterised by their very low weight combined with a powerful design and excellent ergonomics. With a press force of 25kN, all standard ductile sheets up to 3mm thick can be joined.
The super-light new HHP-Mini mobile hand clinching pliers clinch in 0.5 seconds and require only 0.2 litres of air. It can be used vertically and horizontally.
The HHP-Mini manual clinching pliers work purely pneumatically and are equipped with a 360° rotating tool head that allows the operator to clinch assemblies in all positions without having to twist the holding arm. Round clinching points, but also beam clinching points for multilayer pairings and the oval points only available from us, which are used for non-cutting but anti-rotation requirements, can be installed.
Due to the ergonomic handle and its very low, well-balanced weight of only 3,5kg, the HHP-Mini enjoys a very high acceptance among your staff.
The horizontal suspension makes handling this type of tong even easier.
Hand-Held Clinch Unit HHP-H1
.jpg)
The air driven Hand-Held Clinch Unit HHP-H1 is characterized by a very low weight and excellent ergonomics. That is why this mobile clinching unit can be handled very easily.
The Hand-Held Clinch Unit HHP-H1 is designed as a light-weight and therefore very practical hand-held unit. The simple change of its tool holder extends the range of application of this type of Clinching Unit for many industries.
Due to the ergonomic handle and its very low, well-balanced weight, the HHP-H1 enjoys a very high acceptance among your staff.
The horizontal suspension makes handling this type of tong even easier.
Hand-Held Clinch Unit HHP-H2
The fully pneumatic driven Hand-Held Clinch Unit HHP-H2 is characterized by its very low weight and excellent ergonomics. This makes it very user-friendly and allows it to be used optimally in in many areas of industries
The HHP-H2 was originally designed for use in air conditioning and ventilation construction, but is now also highly valued by many customers from different industries. Among employees, the HHP-H2 enjoys a high level of acceptance due to its very low, well-balanced weight and ergonomic handle. The horizontal suspension makes handling this type of clinching units even easier.
The clinching units HHP-H2 can be used to connect angular air ducts and associated flanges that meet the highest requirements of DIN EN 1507: 2006 with regard to tightness class D.

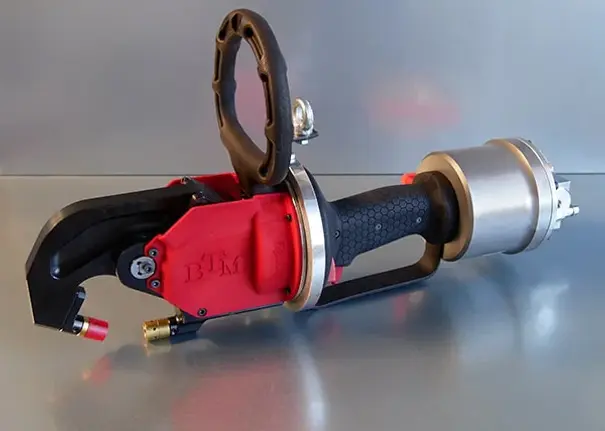

Hand-Held Clinch Unit HHP-H3
As a further variant of our slim Hand-Held Clinch Unit HHP-H1 and the HHP-H2 for connecting horizontal flanges, this mobile clinch tong is designed for the connection of vertical flange plates.
The handling of our Hand-held Clinch Unit HHP-H3 is in principle similar to our products with a C-frame (joining direction axial to the device), but the opening option of the upper jaw and the high pressing force (without separate pressure intensifier) results in a very wide range of application possibilities.
Hand-Held Clinch Unit HHP-V2
The fully pneumatic driven Hand-Held Clinch Unit HHP-V2 is characterized by its very low weight and excellent ergonomics. This makes it very user-friendly and allows it to be used optimally in in many areas of industries
The Hand-Held Clinch Unit HHP-V2 was originally designed for use in air conditioning and ventilation construction, but is now also highly appreciated by many customers from other industries. Due to the very low, well-balanced weight and the ergonomic handle, the HHP-V2 enjoys a high acceptance among employees. The vertical suspension makes handling this type of pliers even easier.
The clinching units HHP-H2 can be used to connect angular air ducts and associated flanges that meet the highest requirements of DIN EN 1507: 2006 with regard to tightness class D.
COBOT Clinch Unit HHP-R
.jpg)
The HHP-R pneumatic scissors-type clinching pliers was developed for use on collaborating robots, or cobots for short. In addition the unit can be used to mount to a pillar or direct into a machine. For this a multifunctional mount interface is designed.
Its slim design together with the large window opening and the wide opening angle offer many application possibilities.
The COBOT clinching pliers HHP-R is another development in the HHP series. Originally designed for use in air conditioning and ventilation construction, this lightweight clinching pliers with an enormous force of 35kN is an attractive solution for use on robots as well. For the new collaborative robots, we have created an interface for easy adaptation of this type of pliers. The clinching pliers can be equipped with the common round point systems Tog-L-Loc®, V-Loc™ and Fixed-Loc™ but also with all our GEOmetric clinching point systems.

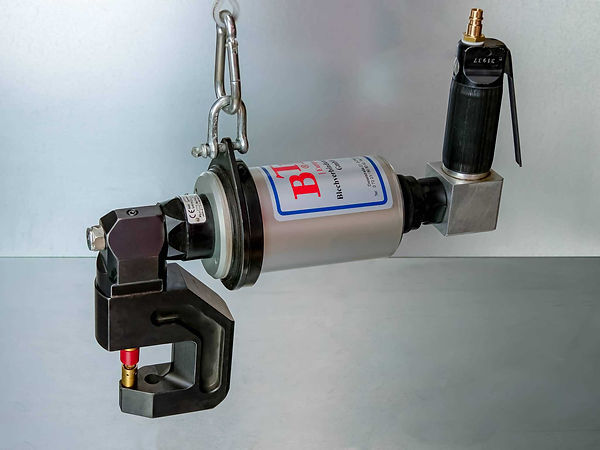

Hand-Held Clinch Unit ULG-H7
.jpg)
The pneumohydraulic Hand-Held Clinch Unit ULG-H7 is predestined for use in limited installation space due to its angled design. Fields of application are e.g. the joining of inner lying steel or aluminium sheets.
The pneumohydraulic Hand-Held Clinch Unit ULG-H7 has a joining force of 29 kN and is predestined for use in limited installation space due to its angled design. Fields of application are e.g. the joining of inner lying steel or aluminium sheets. This mobile clinching unit combines a fast cycle speed with a balanced, weight-optimized and ergonomic design.
The integrated air-oil-booster works quietly and completely vibration-free. It is driven purely pneumatically with a maximum air supply of 7 bar. The joining stroke is triggered by a hand lever, but can also be optionally triggered by foot pedal. ULG clinching units offer a high level of operational reliability. Due to the modular design, a wide range of tool holders such as various C-frames, shear heads or special holders can be offered.
